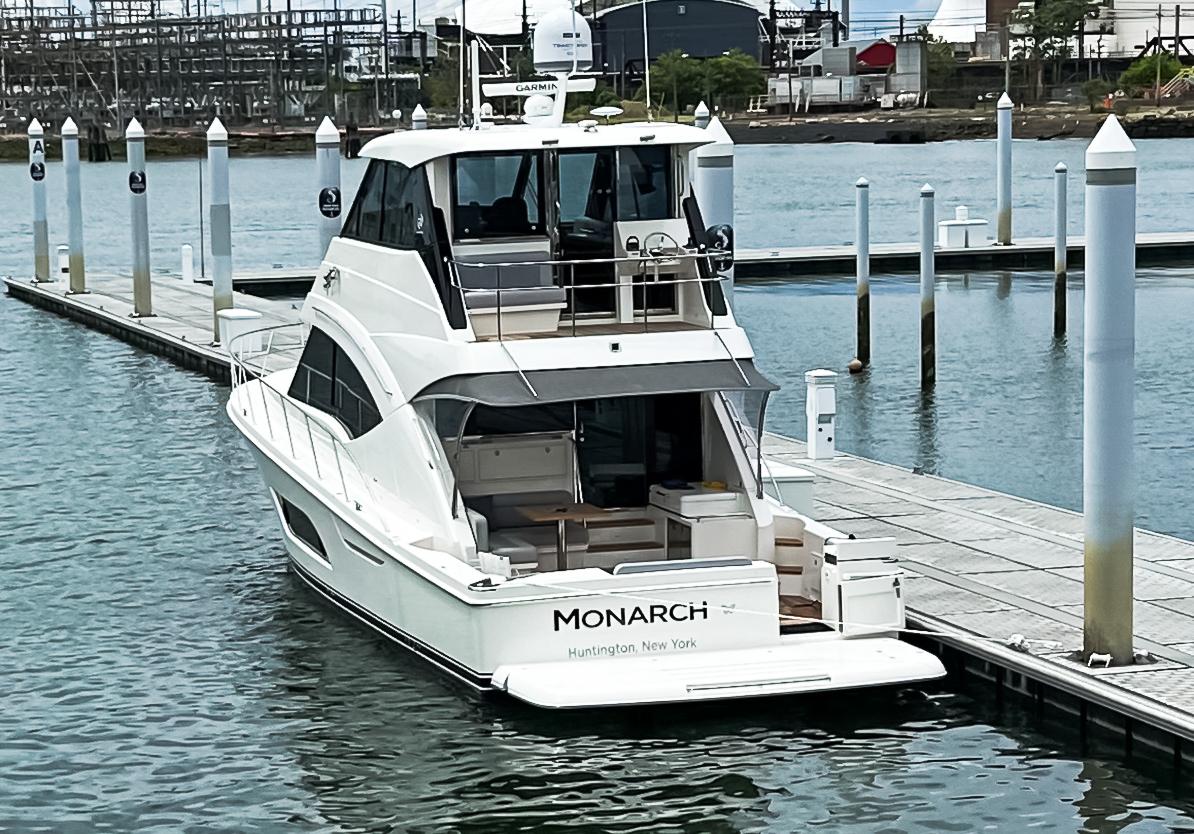

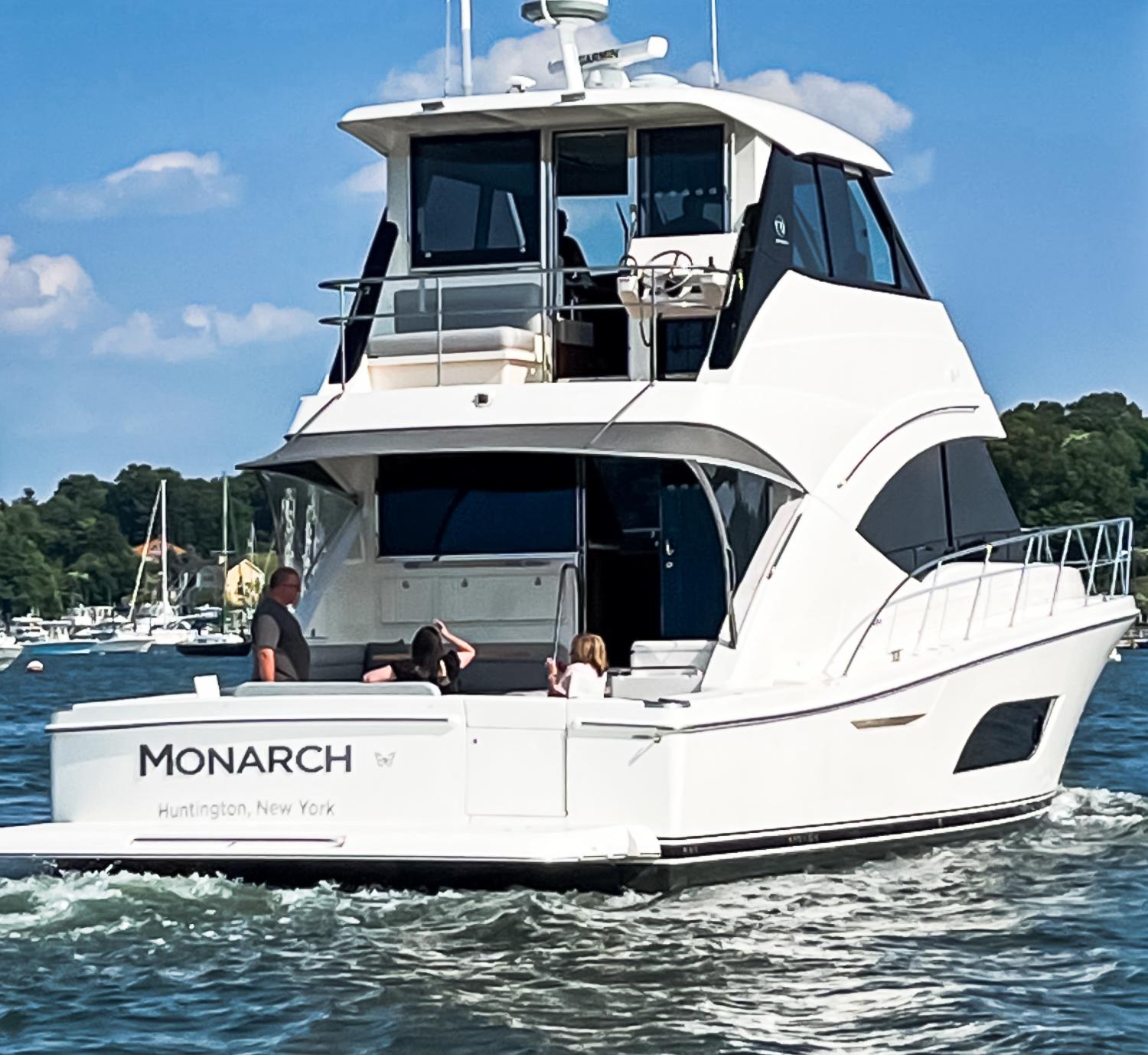

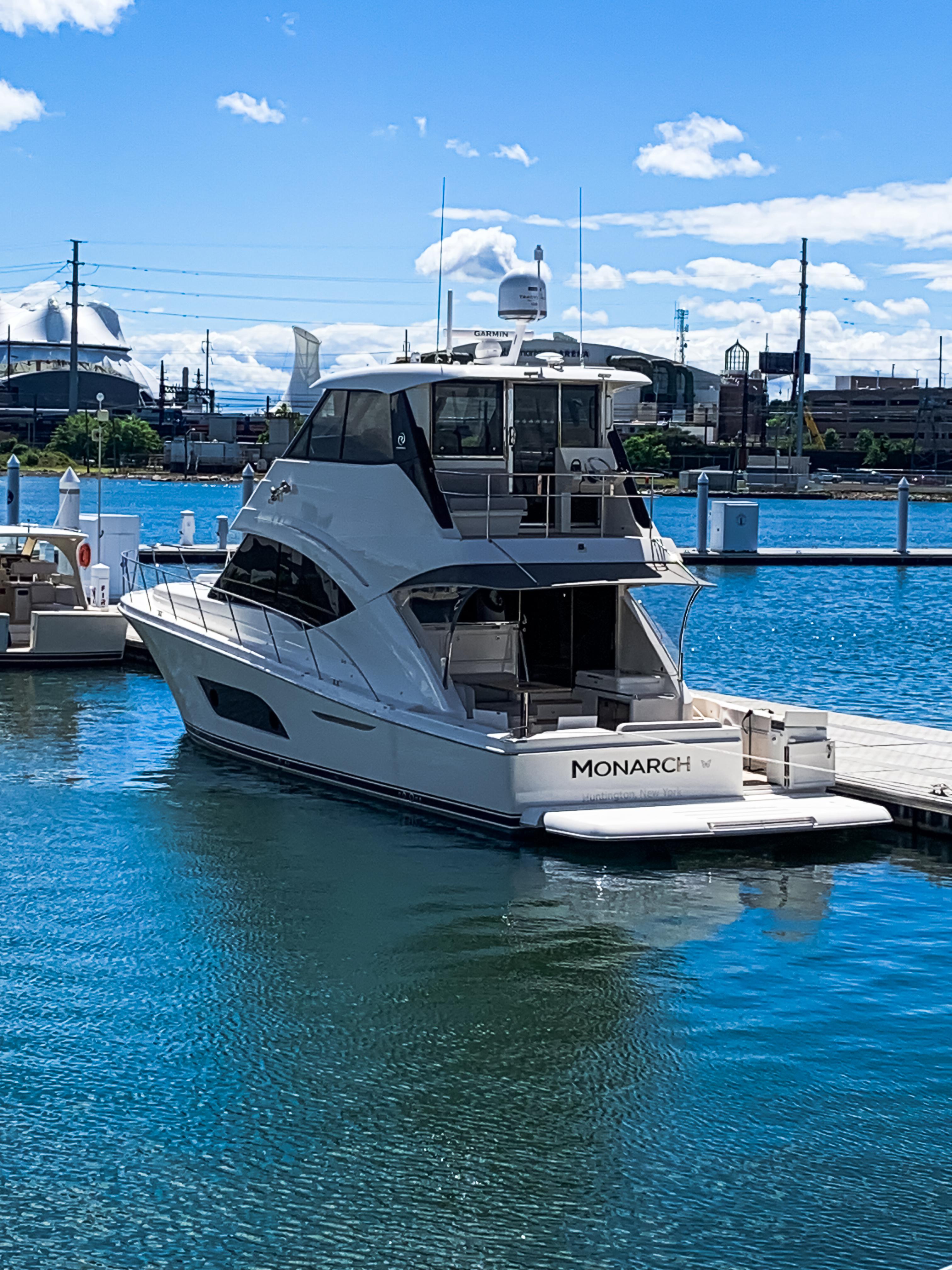

2023 Riviera 57 Enclosed Flybridge Huntington, NY $2,775,000 USD

Here it is!

– if you want to fish – if you want to cruise – or if you are looking to live aboard-

The 57 Riviera can do it all!

Operated and maintained by an experienced owner, with only 140 hours she is barely broken in.

Loaded with all the right gear- Sea keeper 9, Upgraded Generator, Aft docking station, teak cockpit, and davit.

Don’t miss your opportunity to put your name on this beauty!

CONSTRUCTION

• Forward facing hull compartment, foam filled for added strength and noise dampening where possible
• Independent compartments throughout hull
• Isophthallic gelcoat exterior
• Solid GRP keel, chines and engine penetratrion area
• Vinylester resin in first outer layer of hull
• Watertight collision bulkhead forward

GENERAL SPECIFICATIONS

• All exterior stainless steel mirror finish with ground and polished welds, 316 Marine Grade
• Antifouling; 2 coats epoxy undercoat, 2 coats antifoul with propspeed coating to propellers & pod drive gear
• Dyson “multifloor” codless rechargeable vacuum cleaner with detachable long-reach wand
• Fire extinguishers, portable x4 and integral system to engine room

MECHANICAL

• Acoustic and thermal insulation linings to engine room and machinery spaces
• Air conditioning condenser units- 30,000BTU, 36,000BTU, 2x16,000BTU units
• All through hull fittings on or below the water line fitted with ball valves, all hoses double clamped
• Bulge pumps- auto and manual override x 5
• Emergency fuel shut-off valves accessed from outside engine room
• Engine monitoring display (Volvo) 7” Glass Bridge MFD
• Engine mounts- anti-vibration
• Engine room access with stainless steel ladder
• Engine room flowcoated white
• Engine room lighting LED
• Engine room ventilation system air intakes with mist eliminators and forced air out system
• External and internal seawater strainers for main water intakes- engine, generator, and air conditioning
• Fire suppression system for engine room with automatic/manual controls
• Fresh water heater AC
• Fresh water pump, primary (AC, powered off inverter
• Fresh water pump, secondary (DC), independently switched as backup
• Fresh water system with dual water tanks, total capacity 211 gallons
• Fresh water tap and hose set in engine room
• Fuel filters/water separator for engine & generator, dual to main engines
• Fuel level indicator at helm and manual site gauge fitted to each wing tank
• Fuel lines all swaged
• Fuel tanks GRP- total 1070 gals. Engine room 2x 343 gal wing tanks, balanced. Forward (under master bed) 1x 384 gal tank
• Fuel transfer pumps x 2, plumbed from forward tank. Each pump transfers to a wing tank.
• Oil change system to main engines and genset
• Sanitation system, including monitoring panel with pump out controls at helm for overboard pump out and deck fitting for dockside pump out
• Trim Tabs- Volvo trim assist system

MECHANICAL- VOLVO IPS

• Prop Speed coating to propellers
• Props- IPS twin forward facing, 3 blade front, 4 blade rear, counter rotating props
• Steering- IPS Electric, progressive rate steering
• Steering at low speed via Volvo IPS joystick docking control
• Volvo Active Corrosion Protection system (Volvo IPS only)
• Volvo line cutters between props

SUPERSTRUCTURE

• Enclosed hardtop- GRP double molded, 3 sides toughened glass with opening side windows, 2 panograph wipers with washers, vinyl covered headlining and electric sliding sunroof including manual blind and screen
• Rear saloon window opening up with sliding stainless door (in tinted tempered glass)

ELECTRICAL

• Battery banks individually isolated with paralleling for emergency engine starting
• Bonding system to all metallic hull fittings and earth plate. Zinc anodes for galvanic protection
• Dedicated start battery bank for each engine. Auxiliary bank to start generator, independent trickle battery charger to each bank
• Digital monitoring system including AC & DC power metering, fluid tank level monitoring & DC circuit status via 10” color LCD touch screen mounted at aft saloon and 5” touch control screen at helm
• Engine monitoring including instrumentations, alarms, and hours meters
• Batteries (maintenance free)- independent port and starboard start (total x 4) Auxiliary x2 & House 24V x5 (500Ahr Total/350Ahr Usable Li-ion bank)
• Navigation lights LED (international standard)
• Wiring coded, numbered, & assembled in looms where possible

SALOON WINDSCREEN

• Cover- Front windscreen cover (Black Breezeway)
• Windscreen (forward facing)- black tinted and tempered glass

REGIONAL ELECTRICAL SPECIFICATION

• AC power outlets (double) to all staterooms, heads, galley, saloon, flybridge, and engine room. All outlets GFI protected
• Generator- Onan 21.5kW 60Hz with water separating muffler, fresh water cooled, including sound shield, remote stop/start, diagnostics, and hour meter
• Inverter, 4kw integrated into power command system with generator for AC supply to audio visual systems, icemaker and all GPO’s
• Shore Power electrical inlet, 2x50amp, 125/250V
• Shore Power lead, 2x Glendinning Cablemaster, 60 ft.
• Vessel voltage- 120/220V AC 60 Hz

DECK

• Anchor- stainless steel 100 lbs ultra anchor, 328 ft of 3/8” galvanized chain
• Anchor chain chafe plate fitted to bow sprite
• Anchor locker with rope/chain divider (offset to starboard). Access from hatch on deck
• Anchor safety strap
• Anchor winch vertical with overload protection circuit breaker, suit rope & chain, up & down switches & remote to helm
• Bow rail welded stainless steel (316 marine grade, highly polished) with mid safety wire including flag staff and burgee (bow flag)
• Bow roller stainless steel self-loading, through bowsprit, heavy duty
• Cleats- pop-up fender style x2 to cockpit coaming
• Cleats- stainless steel 13”, 8 total. Bow x2, spring x4, cockpit x2, and fairleads x2
• Fender holders x4 to bow rail
• Rails port and starboard of flybridge above window for sage passage to forward deck
• Washdown at anchor locker- freshwater including hose
• Washdown at anchor locker, seawater
• Windscreen cover, snap on exterior to forward saloon windscreen (Black Breezeway)
• Rub rail- impact and UV resistant PVC (white) with stainless steel insert strip

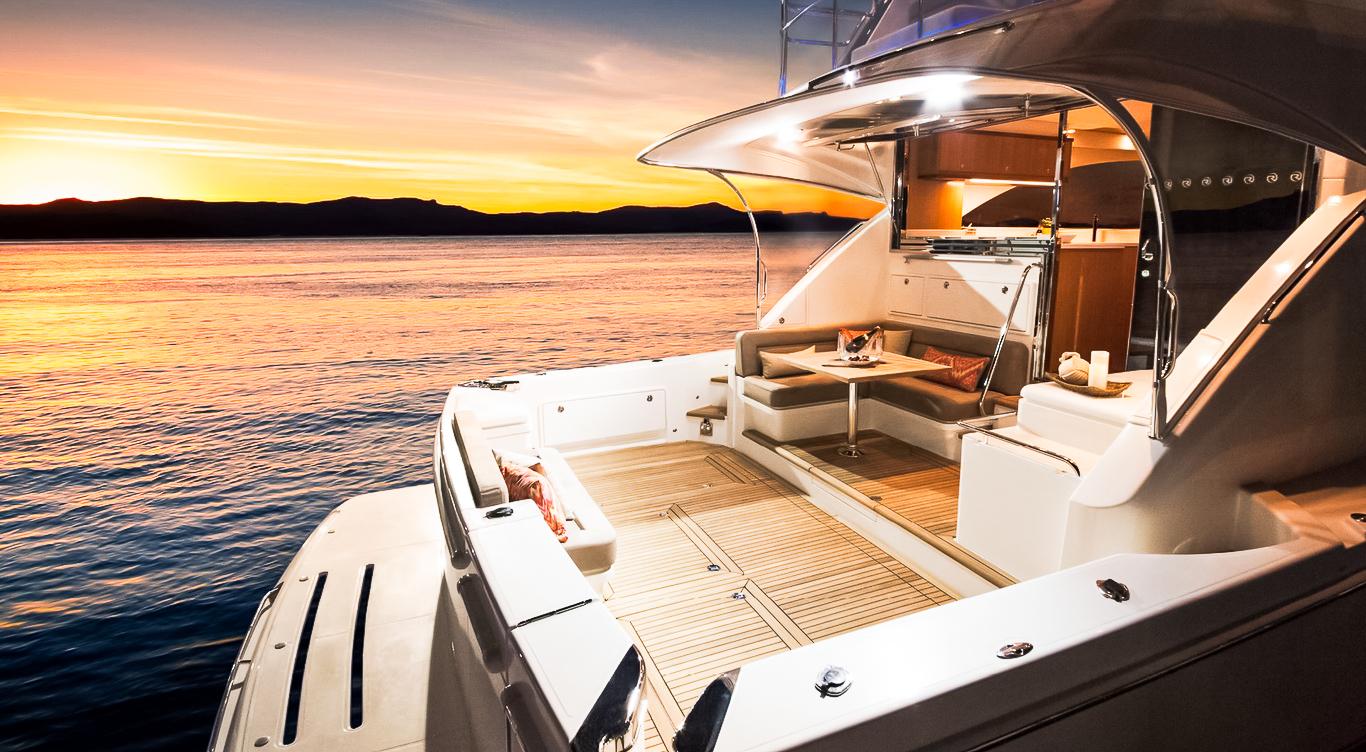

COCKPIT

• Cockpit floor reinforced with alloy plate for future game chair or table
• Covers- triangular quarter glass clears to cockpit port and starboard in Strataglass
• Docking station, includes joystick & emergency start stop controls
• Double action manual bilge pump for engine room
• Engine room access via lift up hatch with gas strut
• Grab rails to assist access to side decks
• GRP locker to storage, includes stainless steel catches
• Hand held shower hot & cold (fresh water)
• Hawse holes to rear cockpit coaming corners with open back
• Lighting- flood lights, overhead and courtesy (LED)
• Mezzanine floor level, teak laid, including steps into the saloon
• Mezzanine, including L shaped aft facing seat (white vinyl) with cover
• Rear saloon window opening up with sliding stainless door (in tinted tempered glass)
• Refrigerated coolbox top loading in mezzanine seating
• Self draining cockpit to stern outlet
• Steps to side decks port & starboard
• Storage bin x 1 (GRP insulated) in cockpit floor with pump out and gas struts
• Transom- storage box with drain and lift-up lid, lounge seat (white vinyl) including lift up base to storage and cover
• Transom door, GRP opening outwards with folding bridge over
• Wash down outlet freshwater (hose supplied)
• Wash down outlet seawater
• Waterproof GPO to cockpit locker
• Wetbar, starboard forward side, includes 2x electric BBQ (grill/plate) units, icemaker, fridge drawer, sink, hot and cold faucet, and storage

ELECTRIC-AUDIO/VISUAL

• Flybridge- 28” LED TV, integrated into 12V FM stereo CD/DVD player with Bluetooth, 4 speakers and remote to helm
• Master stateroom Aft, 32” LED TV integrated into home theatre system
• Saloon/Cockpit- 43” LED TV integrated into Yamaha AV receiver with Apple TV, Airplay, Bluetooth, Blu-Ray and second zone to cockpit, Bose speakers x5 plus subwoofer in saloon and x2 in cockpit
• Stateroom forward- 28” LED TV integrated into Fusion FM stereo CD/DVD player with Bluetooth and 2 speakers

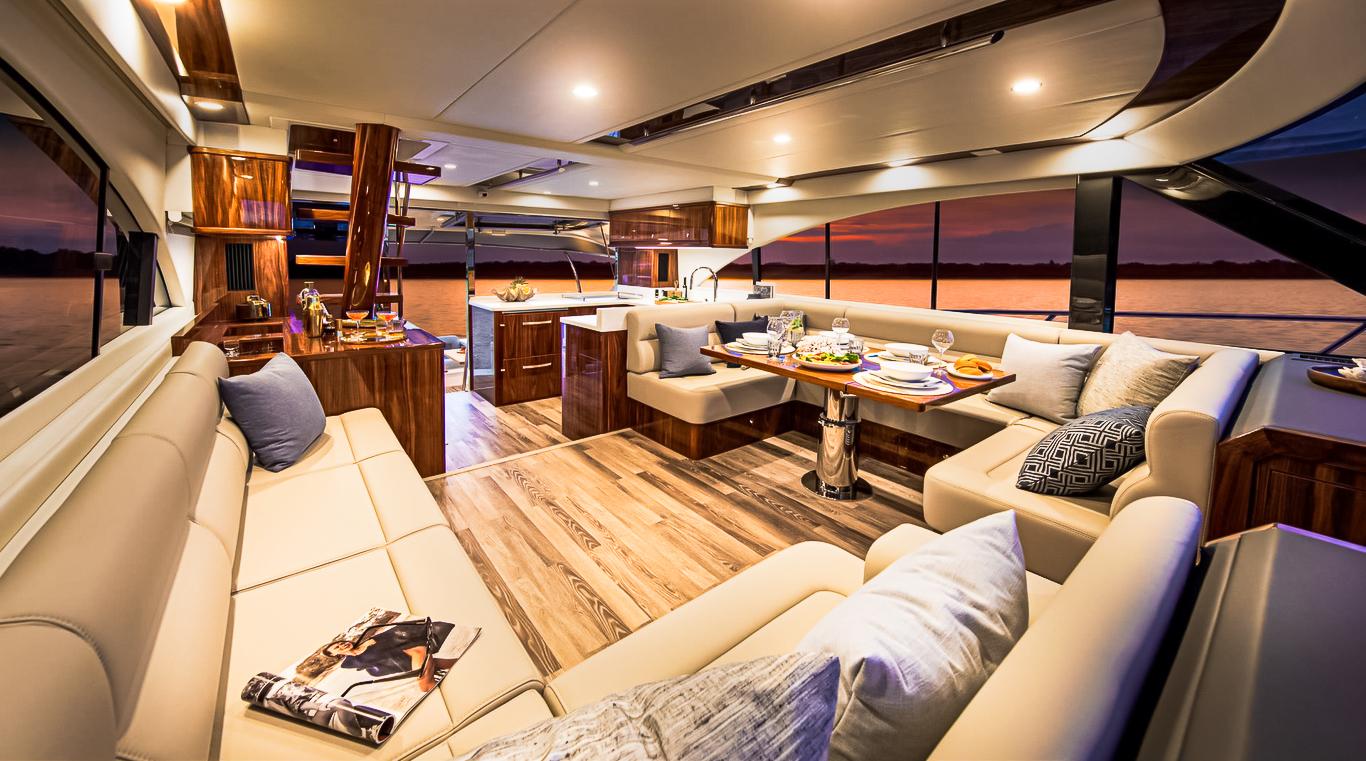

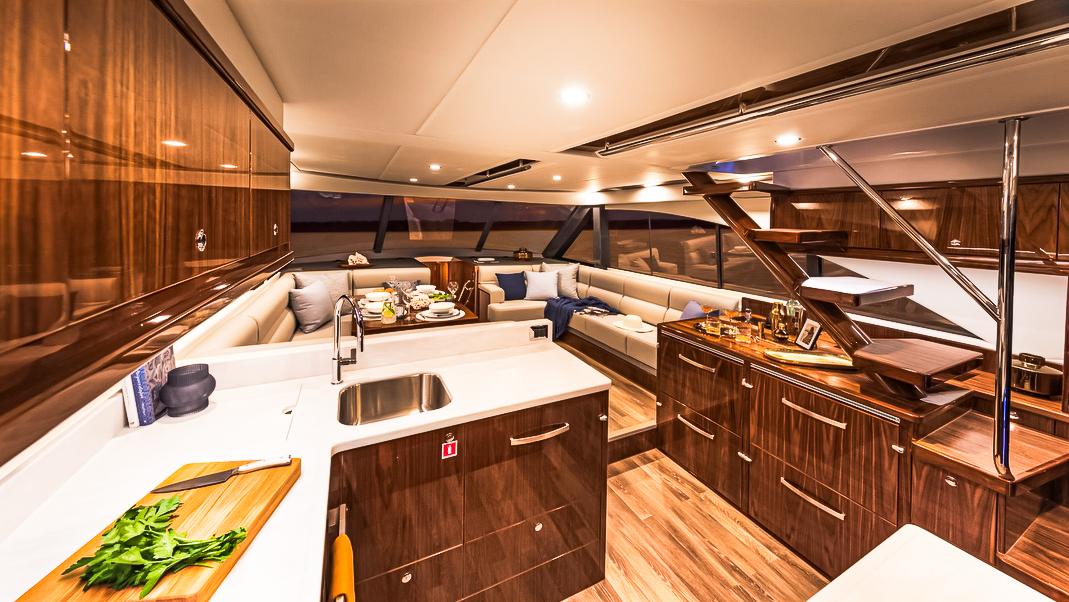

SALOON

• Air conditioning with electric heat 2x 16,000 BTU (split to galley)
• Carpet with underlay
• Premium grade vinyl flooring at saloon entry door
• Concealed mood lighting (LED)
• Dinette, u-shaped portside with storage under
• Head lining, vinyl with padding
• Liquor cabinet- built in lockers for glass and bottle storage
• Liquor cabinet- refrigerator- 2 x drawer unit (forward), freezer- 2 x drawer unit  (aft)
• Lounge, l-shaped to starboard side
• Table, dinette- twin folding leaves mounted onto hi-lo pedestal able to convert into coffee table

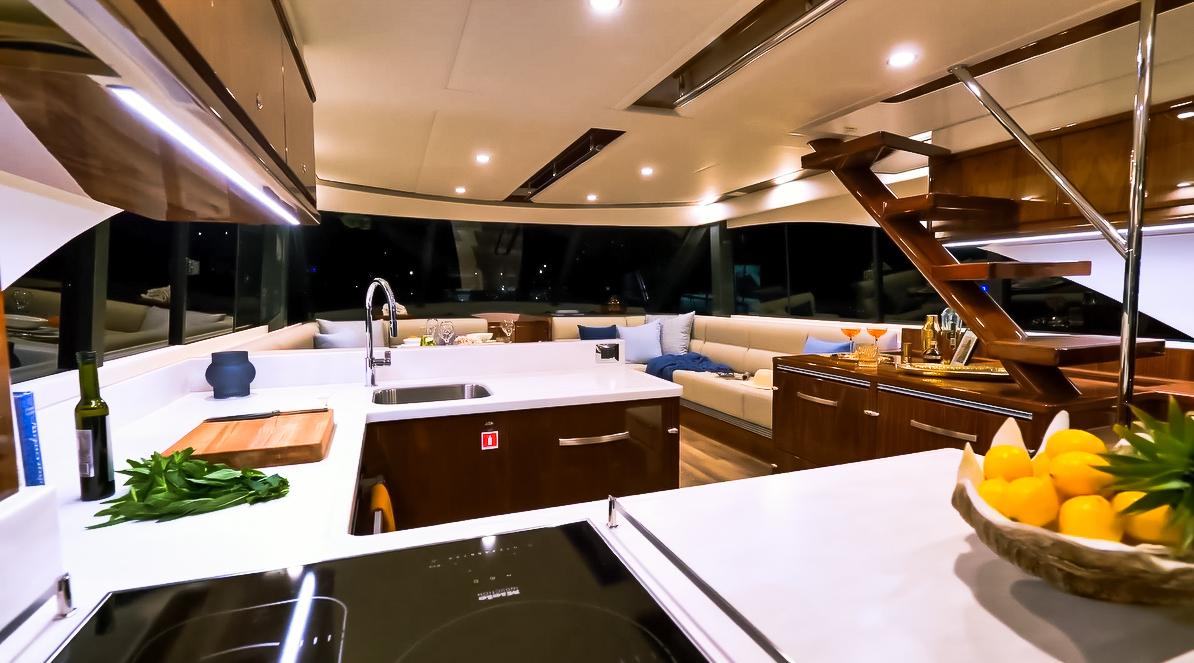

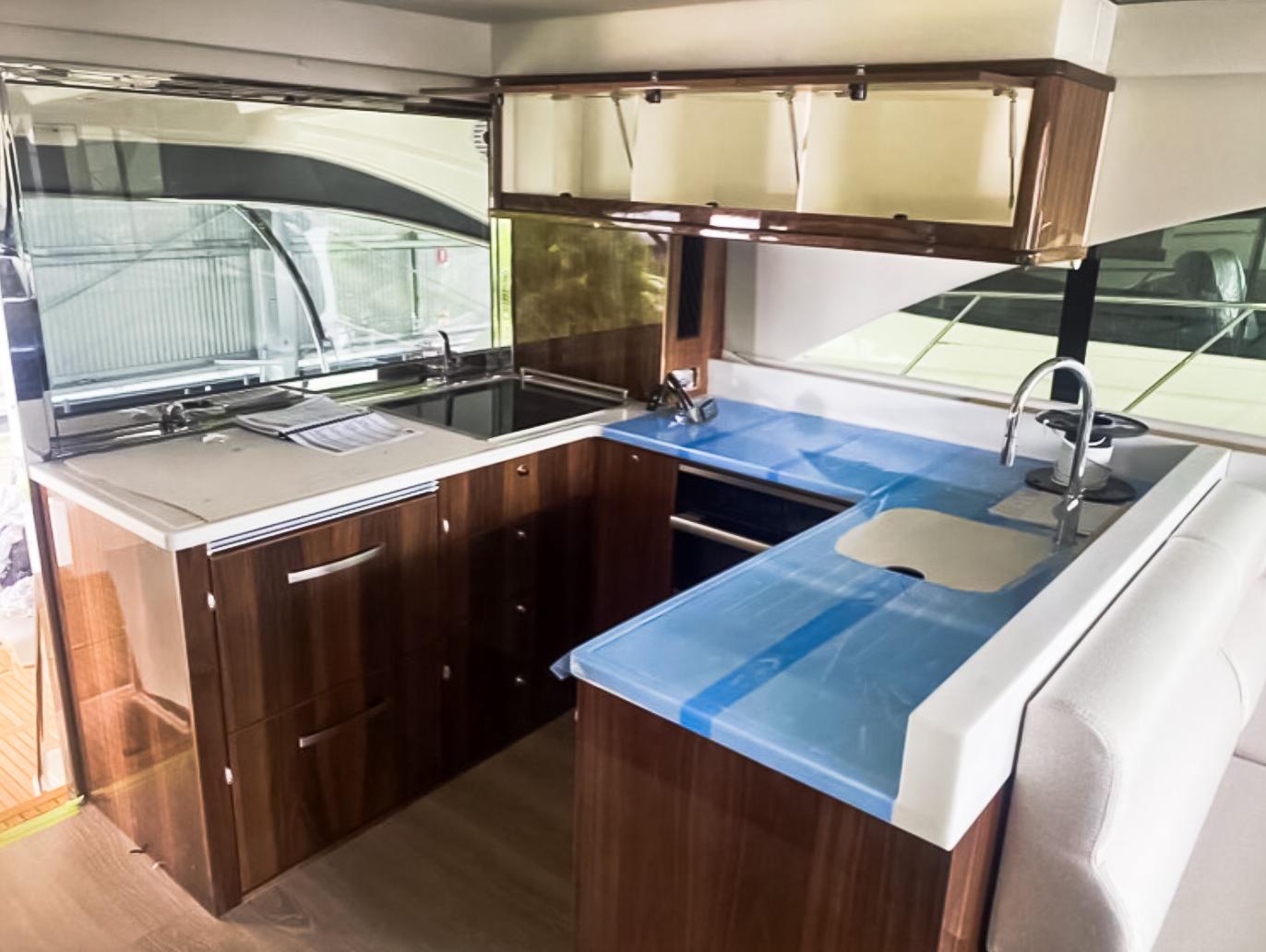

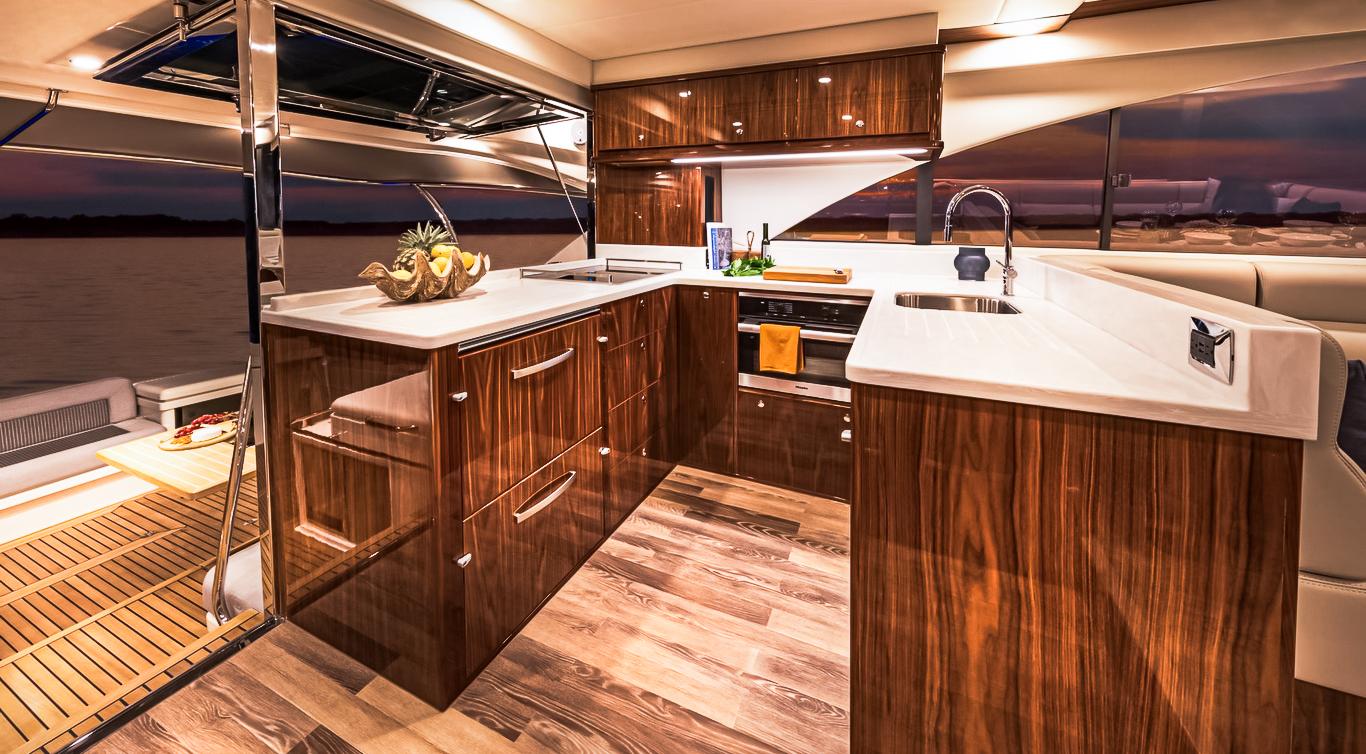

SALOON-GALLEY

• Combination oven-microwave with grill (premium brand)
• Dishwasher (drawer)
• Electric induction cook top (3 element)
• Flooring, vinyl premium grade
• Garbage bin
• Lighting, overhead LED
• Range hood
• Refrigerator drawer unit (wide), 2 x drawers
• Solid surface bench top with stainless steel sink and mixer tap
• Storage cabinets & drawers below and above bench

COMPANIONWAY

• Flooring- upper companionway landing and stairs to saloon in premium grade vinyl ( to match saloon)

STATEROOM- MASTER

• Access to private ensuite
• Air conditioning: 16,000 BTU (split into ensuite)
• Carpet with underlay
• Concealed mood lighting (LED)
• Headboard with feature timber panels
• King size walk around berth with latex mattress
• Lounge to port
• Overhead lighting
• Hull windows fixed glass only recessed into hullside including fitted window furnishings
• Private entrance door
• Reading lamps x 2 (LED)
• Storage drawers outboard with positive locking hardware
• Timber bench top outboard with lighting, power outlet and concealed storage
• Portholes opening round to master cabin with alarm to helm
• Walk in robe with storage and auto lighting

STATEROOM-STARBOARD

• Air conditioning 6,000 BTU, split off fwd cabin
• Bureau with mirror and drawers
• Carpet with underlay
• Hanging locker with lighting (LED) and drawers below
• Hatch, square, with oceanair bling
• Headboard-upholstered
• Private entrance door
• Reading and overhead lighting (LED)
• Upper and lower berths (innerspring mattresses) with storage under lower berth

STATEROOM- FORWARD

• Access to private ensuite/dayhead
• Air conditioning: 12,000 BTU, split to forward head
• Carpet with underlay
• Concealed mood lighting (LED)
• Hanging locker, cedar lined to starboard with auto lighting (LED) and cedar lined storage locker to port with shelving
• Hatch, small x2, square with screen and blind
• Headboard upholstered
• Hull windows fixed in tinted tempered glass, including blinds
• Private entrance door
• Queen walk around berth with latex mattress, drawers underneath
• Storage cabinets outboard with positive locking hardware and gas support struts

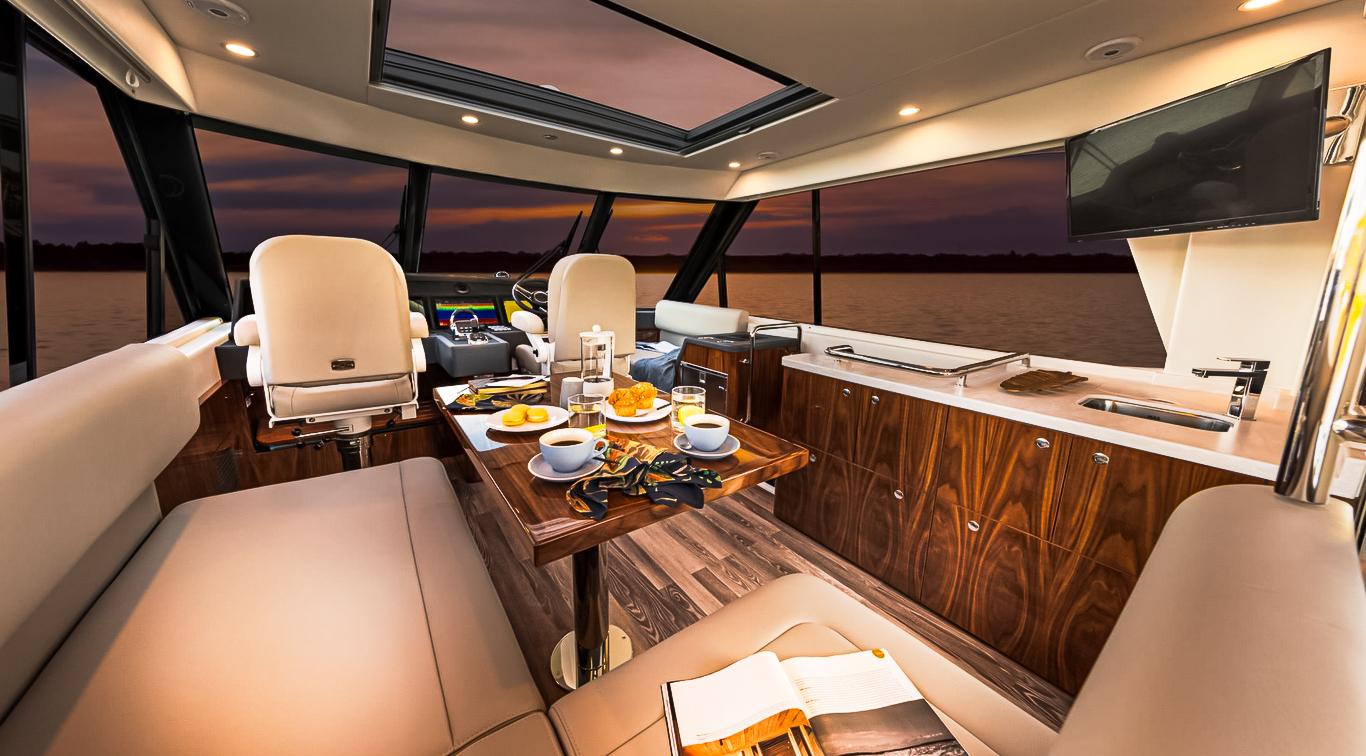

FLYBRIDGE

• Air conditioning 2 x 18,000 BTU with outlets at helm, demister, and aft flybridge
• DC Drawer refrigerator integrated into arm rest within port lounge
• Docking station starboard aft, start/stop, steering wheel & engine alarms, include (joystick with Pod Drive option throttles or throttles and thruster control with shaft drive option) includes cover
• Electric sunroof (Webasto) including screen and blind
• Flooring- internal flooring- premium quality vinyl, exterior flooring- teak laid
• Flybridge forward windows, clear tempered windscreen
• Grab rails, stainless steel, conveniently located
• Hatch, square for easy access to hardtop
• Integrated steps to assist access to hardtop area
• Lighting- LED overhead, courtesy and red night light
• Lounge- L shaped lounge to port side with storage beneath
• Lounge, aft deck aft facing behind rear bulkhead with storage beneath
• Rear railing including midrail in stainless steel highly polishes
• Side windows tinted, opening
• Table- timber varnished on fixed height pedestal
• Wet bar including solid surface benchtop with sink and faucet, rubbish bin and storage
• Window covers- interior front snap on, side and rear roller blinds
• Windscreen wipers x 3 pantograph with fresh water washers

HEAD-MASTER & GUEST

• Air conditioning split from staterooms
• Extraction fan
• Flooring- shower stall in solid surface tiles to match vanity benchtop. Dry area in vinyl (premium grade to match galley)
• Lighting, overhead and vanity LED
• Master head- blackwater tank level indicator
• Shower stall with frameless glass door and shower head (on slide bar)
• Solid surface vanity benchtop with porcelain sink and mixer tap
• Timber locker door to underbench storage
• Toilet (fresh water flush)
• Toilet roll holder & accessories
• Towel rails to heads
• Vanity cabinet
• Vanity mirror

HELM

• Chain counter (anchor)
• Compass, 4.75” with light
• Dedicated switches for horn, wipers (with intermittent setting), overhead and navigation lights and engine start/stop
• Drink holders x2
• Electronic engine control unit, twin lever gear and throttle
• Helm and companion chairs, fully adjustable in Naugahyde with arm and foot rests
• Helm electronics area with 24vdc feed, main circuit breaker protected.
• Intercom to galley and engine room
• Joystick docking control
• Navigation- 3x 17” 8617 Volvo Glass Bridge MFD’s Inc. GPS & GRID controller with integrated autopilot
• Navigation- Volvo/Garmin autopilot integrated into bridge
• Recess- molded for mobile phones
• Spotlight control panel
• Storage lockers and drawers
• VHF radio including aerial
• Visual & audible signal for bilge high water

HULL COLOUR

• Painted hull topsides METALLIC colour

COCKPIT

• Table, teak- fitted to fixed pedestal. Includes cover.

COCKPIT FLOOR

• Teak laid cockpit floor, side access steps. Mezzanine and saloon entry step.

UPHOLSTERY & INTERIOR OPTIONS

• 2 helm seats upholstered to match Riviera lounge upholstery
• Cockpit mezzanine uphostery upgraded to Sunbrella including White Stamoid cover
• Galleyware, Bathware, Mattress Protectors, fitted sheet sets
• Upgrade to saloon roller blinds, side(electric) rear bulkhead (manual)

FORWARD DECK

• Sun pad on forward deck - closed cell foam, White Vinyl covered, includes stainless steel rails, drink holders, and white cover

SWIM PLATFORM

• Hydraulic lift for GRP swim platform up/down, 350kg with fixed hob section, including reinforcement of transom

APPLIANCE OPTIONS

• Separate premium quality washer & dryer in companionway

ELECTRICAL

• Czone-configuration for Ipad connectivity. Includes programming and WiFi interface (does not include Ipad)
• Upgrade to house battery bank to include additional lithium-ion battery (total x6) (600AHr total/ 420AHr usable capacity)

ELECTRONICS & AUDIO/VISUAL

• Stateroom Starboard- 22" LED TV/DVD combo and 12V stereo with Bluetooth and 2x speakers

ENGINE ROOM

• Twin Volvo IPS D13 1200 Diesel (662kW/900hp) inc. low speed mode, DPS, Autopilot, ACP, twin lever controls (helm) & joystick controls x3 (Helm, FB aft docking station & cockpit), 3 x 17” Glass Bridge displays, GRID controller & clear wake exhaust & auto trim
• Volvo Penta Easy Connect, for remote app-based monitoring and recording of engine data

MECHANICAL

• Tropical package - Air-conditioning, Saloon (48,000BTU), Flybridge (48,000BTU), Fwd & Stb Stateroom (16,000BTU), Master Stateroom (16,000BTU), incl. heat reflective film to saloon & flybridge windows front & sides
• High Pressure water cleaner plumbed to outlets at bow and cockpit (supplied with 1x 10 metre (32'10”) hose and spray wand)
• Generator upgrade to 29kW/60Hz

REAR AWNING

• Half rear awning including quarter panel clears

FLYBRIDGE CANVAS

• Enclosure to rear flybridge in clear strataglass, hardtop to flybridge floor, including zipper opening windows

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
